How to control

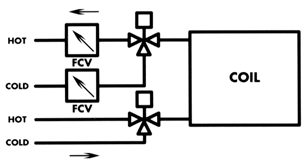

COIL WITH THREE-WAY VALVE FOR HEATING OR COOLING
Multi-purpose coils serve a useful purpose by providing heating or cooling depending on zone requirements. In a building with several multi-purpose coils, system pressures will vary on both the hot and chilled water side, requiring FlowCon Flow Controls to limit and balance flow at each coil location.
figure.04
