| Automatic Flow Control Valve 1/2" - 1-1/2" |
| Accessible Pre-set Cartridge |
| Specifications |
 |
| Pressure/Temperature rating |
2,500 kPa / 120°C |
| Cartridge |
AISI 304 passivated stainless steel
AISI 17-7 PH stainless steel spring |
| body material |
Enkotal Dezinc Resistant Brass |
| End connections |
1/2~1-1/2"JIS/Rc
(Taper Pipe Female Threaded) |
| Seals |
EPDM 0-Rings |
| Body Tappings |
1/4"ISO (Parallel Threaded) |
| Assembly |
Valve comes fully assembled. |
| Accessory Options |
Strainer (20 mesh) *1 |
|
|

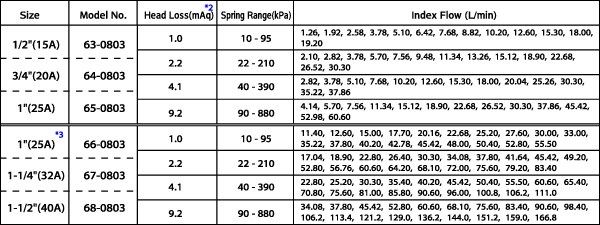

| Flow Rates (±5%) |
 |

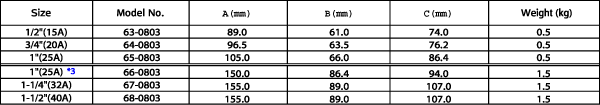

| DIMENSIONS & WEIGHT(NOMINAL-measured in mm unless noted) |
 |
NOTES
*1:The optional strainer is internal and does not affect the dimensions.
*2:Head Loss in Meter is provided for pump head calculations.
*3:1" valve with 1-1/2" cartridge. |
|
|
