| Function | ||

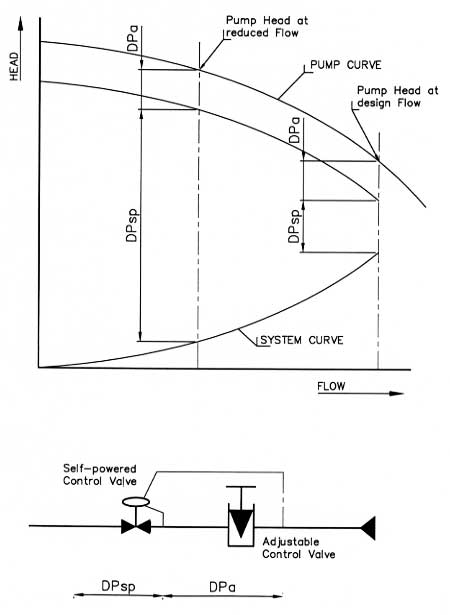

| The FlowCon SH series of valves incorporate a diaphragm component mounted on a counter-acting coil spring which adjusts the pressure differential across a pre-set valve opening. The combined components operate very similarly to two valves in series, one pressure differential regulator and one adjustable orifice. This is illustrated in the figure below. |
||
 |
||
|
