| CONFIGURATION OPTIONS |

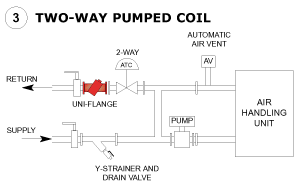

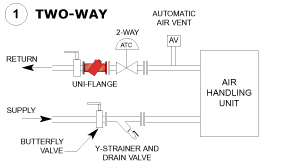

| In the diagram below are four different configuration options utilizing the Uni-Flange valve |
|
|
|
FOR 2" PIPE

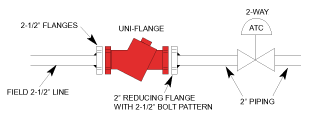

• A REDUCING FLANGE CAN BE USED IN THE FIELD AS SHOWN
• LINE-SIZE TRANSITION THROUGH THE UNI-FLANGE IS POSSIBLE WHEN ATC IS CONNECTED. TYPICALLY, ATC IS ONE SIZE SMALLER THAN THE PIPE SIZE.
|
 |
|
| AVAILABLE FLOWS AND PRESSURE RANGES |
| PIPE SIZE |
- |
GRISWOLD |
FDI |
| IR/IY |
MAX FLOW(GPM) |
RANGE(PSID) |
FLOW(GPM) |
RANGE(PSID) |
| 1-1/2" |
57 |
2-32 |
50 |
2-32 |
| 76 |
4-57 |
70 |
5-60 |
| 2" |
57 |
2-32 |
50 |
2-32 |
| 76 |
4-57 |
70 |
5-60 |
| 2" |
UNI-
FLANGE |
171 |
2-32 |
80 |
2-32 |
| 228 |
4-57 |
120 |
5-60 |
| 2-1/2" |
171 |
2-32 |
80 |
2-32 |
| 228 |
4-57 |
120 |
5-60 |
| 3" |
171 |
2-32 |
80 |
2-32 |
| 228 |
4-57 |
120 |
5-60 |
|
|
|
