| AUTOMATIC FLOW CONTROL 2-1/2" - 3" UNI-FLANGE VALVE |
|
 |
| SPECIFICATIONS |
PSI / Temperature Rating:
Cartridge:
Body Material:
End Connections:
Seals:
Body Tappings:
Assembly:
Options:
Isolation Options: |
150 PSI / 275º F
AISI Type 304 stainless steel
AISI Type 17-7 PH stainless
steel spring
Ductile Iron ASTM A536-80
Class 50-40-18
ANSI 150 Lb. Flanges 2-1/2
and 3 Inch
EPDM O-Rings
1/4" NPT with P/T test valves
Valve comes fully assembled
Extended PTs
Butterfly/Ball Valve
Drain Valve |
|
|
| FLOW RATES (±5%) |
| SIZE |
MODEL NO. |
HEAD LOSS IN
FEET*1 |
PSID
RANGE |
GPM |
| MIN |
INCREMENT |
MAX |
2-1/2", 3"
|
3UF1_B_ |
3.5 |
1-20 |
12.0 |
2.0 |
114.0 |
| 3UF2_B_ |
7.4 |
2-32 |
18.0 |
3.0 |
171.0 |
| 3UF3_B_ |
13.4 |
4-57 |
24.0 |
4.0 |
228.0 |
| 3UF4_B_ |
30.0 |
8-128 |
36.0 |
6.0 |
342.0 |
|
| DIMENSIONS & WEIGHTS (NOMINAL) |
| SIZE |
MODEL
NO. |
A
HEIGHT |
B
HEIGHT |
C
LENGTH |
Cv*2 |
WEIGHT
(LBS.) |
2-1/2", 3"
|
3UF__B_ |
5.25 |
4.30 |
10.73 |
119 |
20 |
|

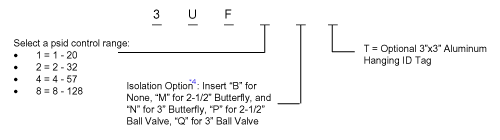

| MODEL NUMBER SELECTION*3 |
 |
|
NOTES
*1 Head Loss in Feet is provided for pump head calculations. (1 PSI = 2.307 Feet of Water)
*2 CV measured without cartridge
*3 Model no. and flow rate are indicated on label affixed to body
*4 Ball Valve options available Fall '99 |
|
|
